Description

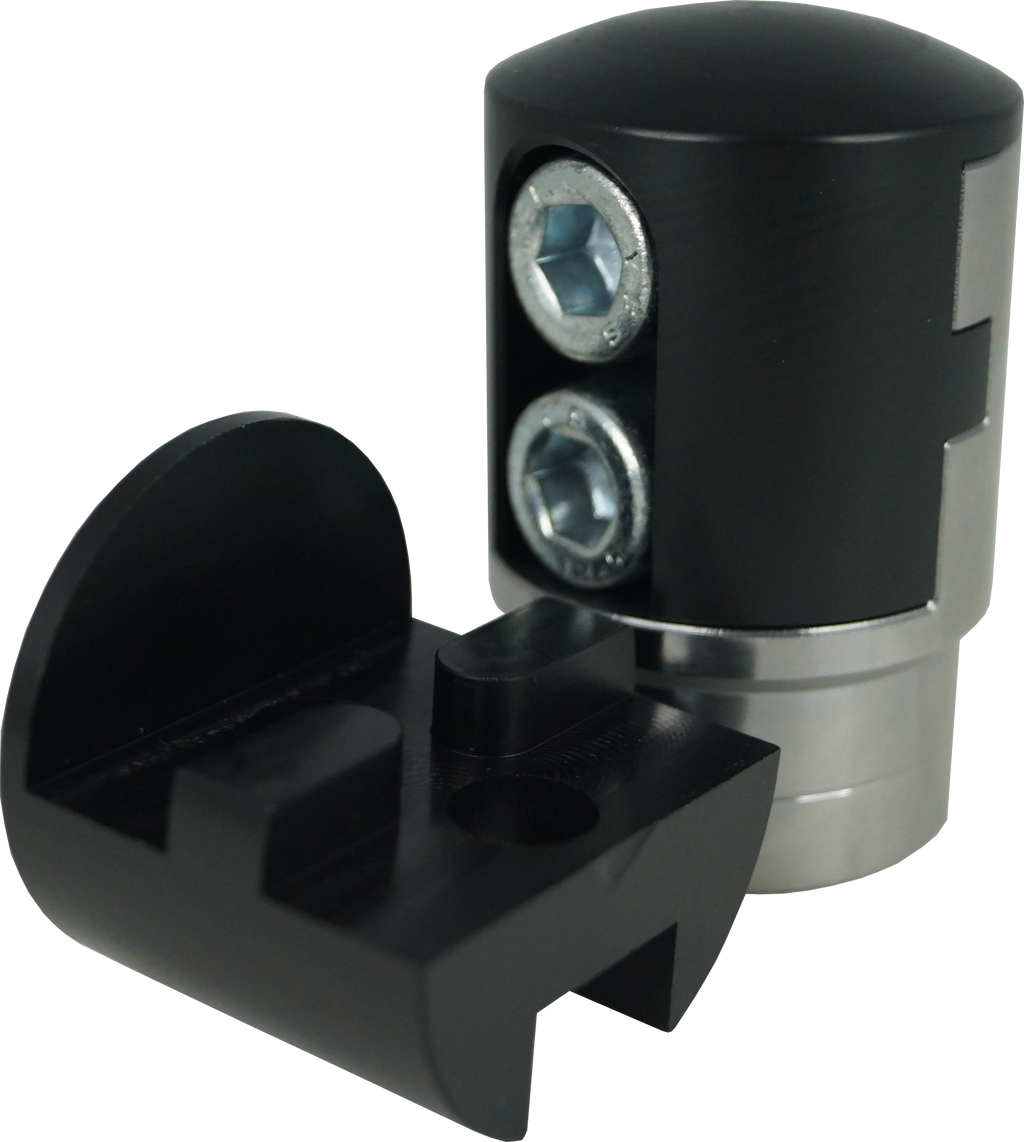

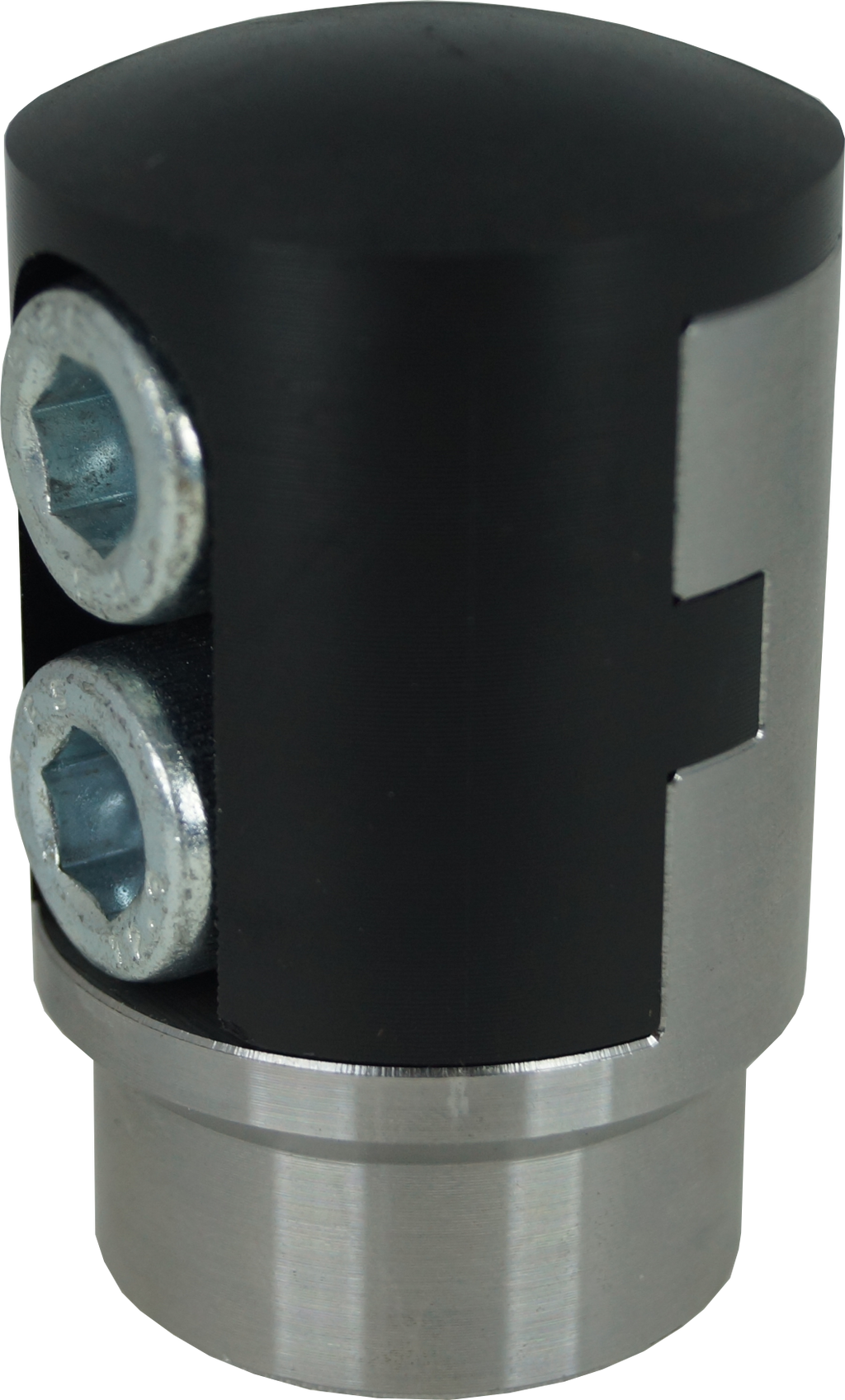

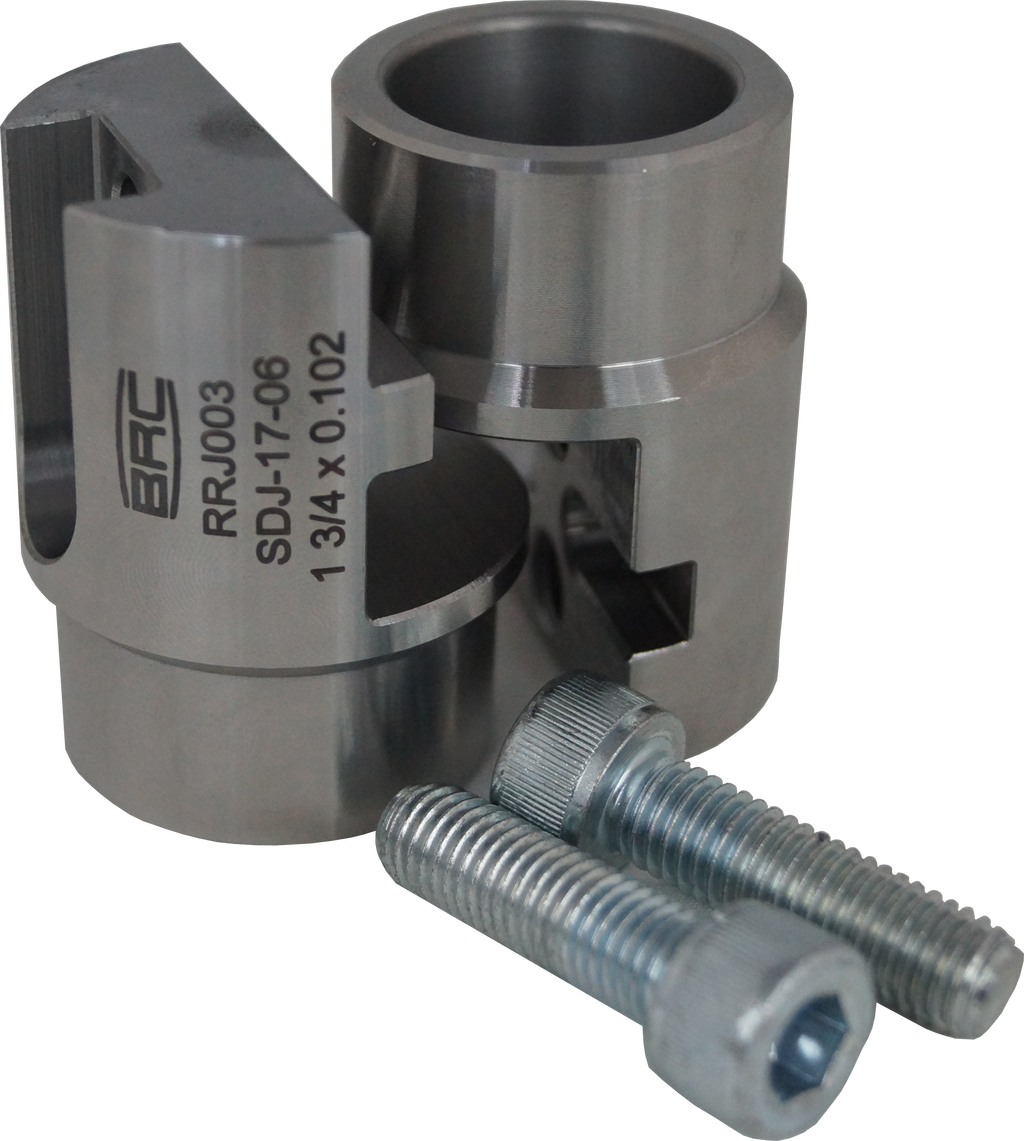

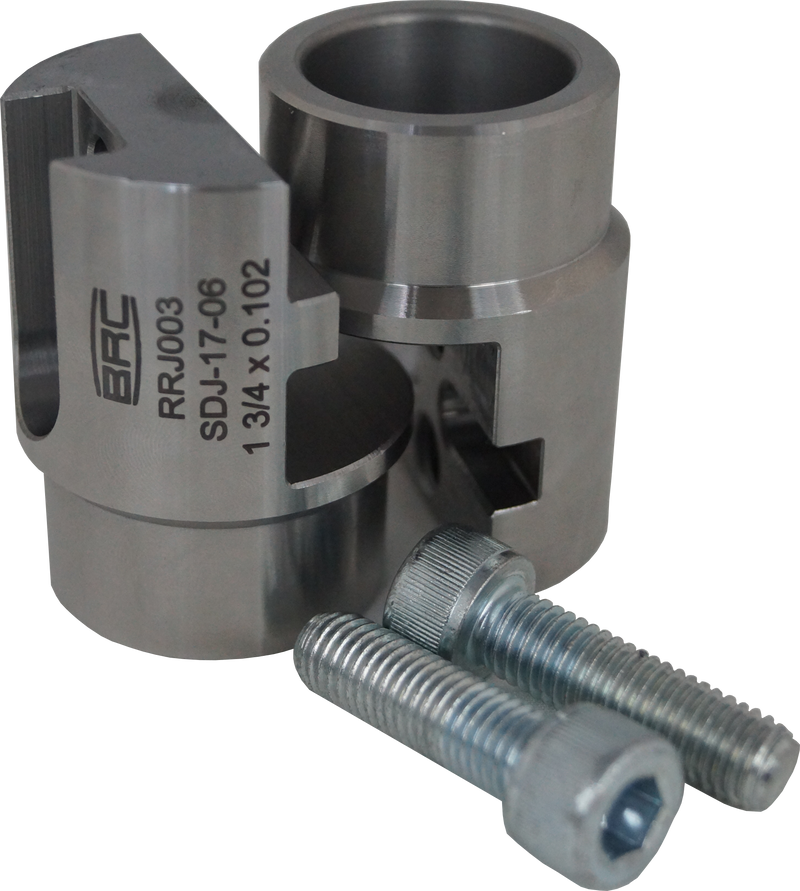

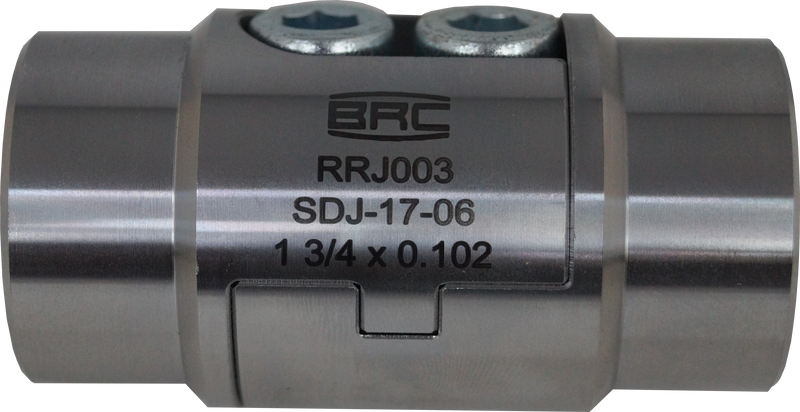

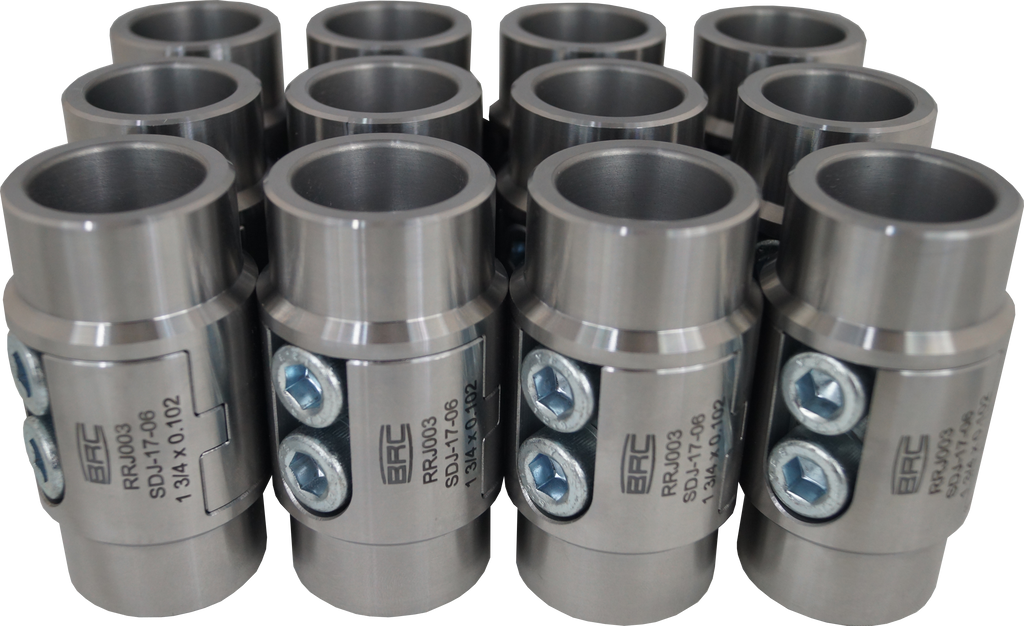

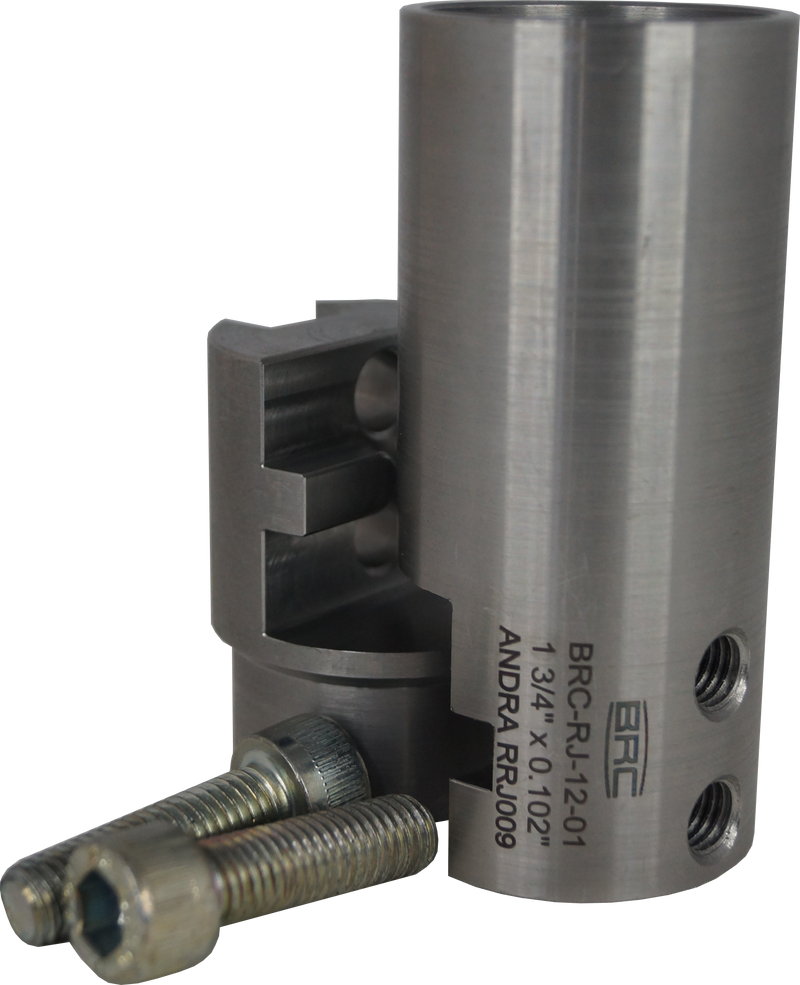

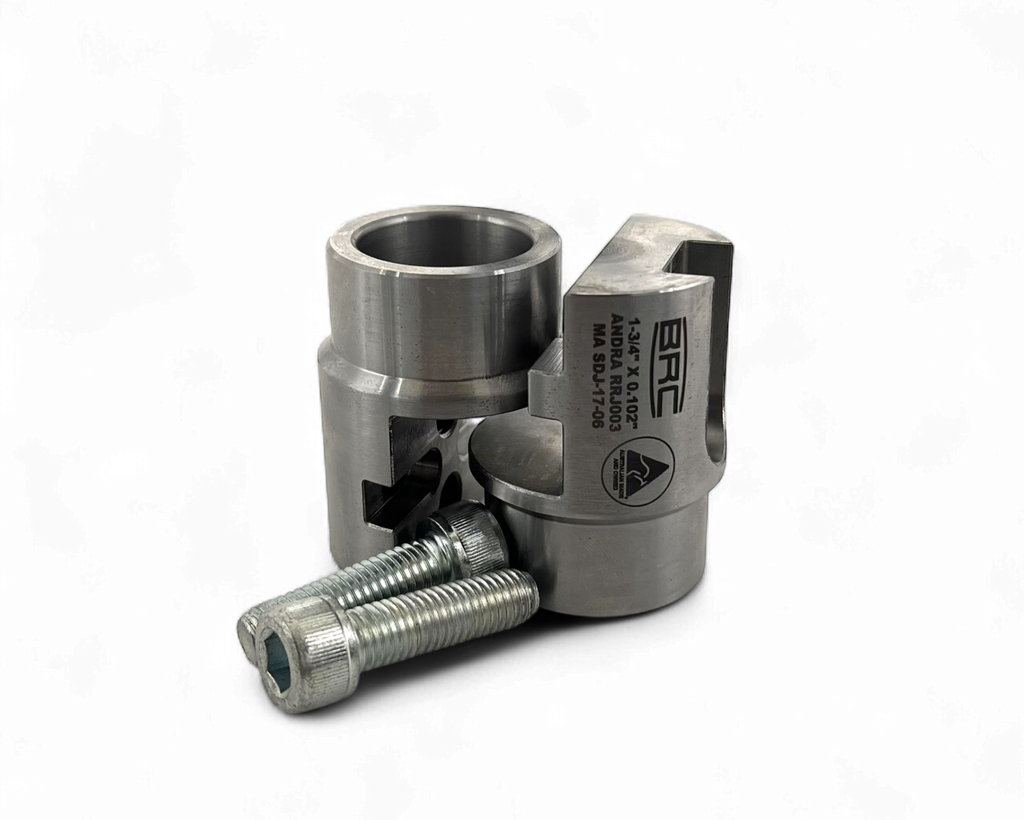

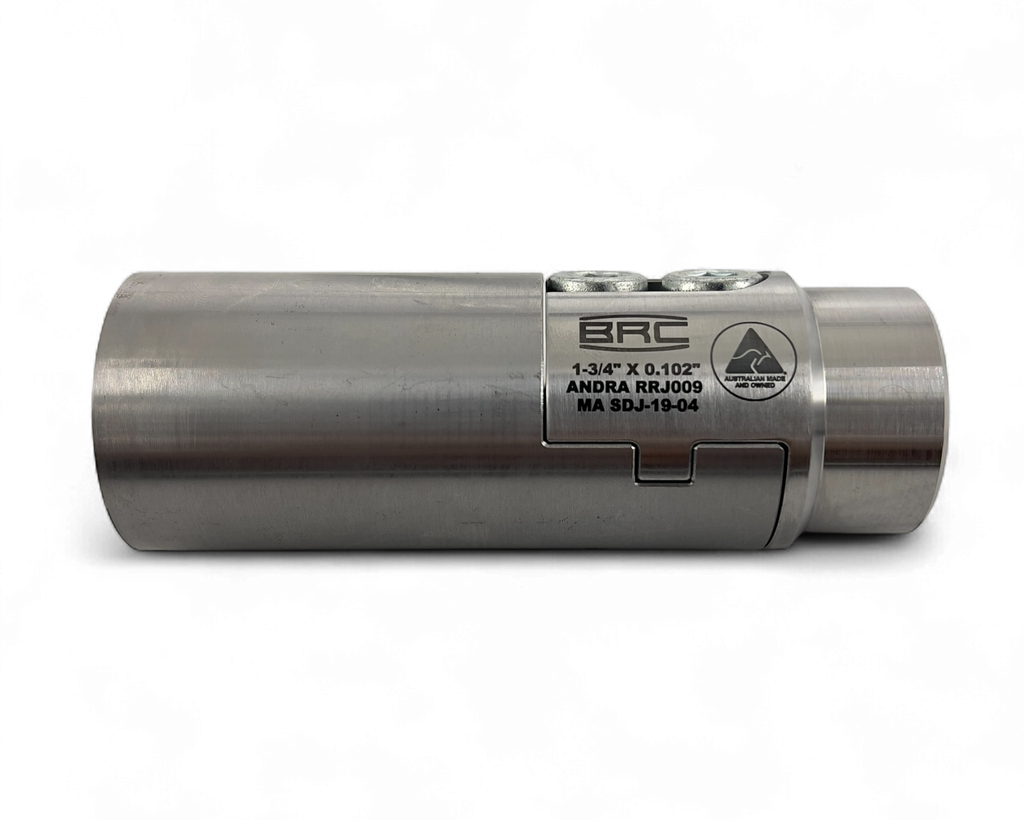

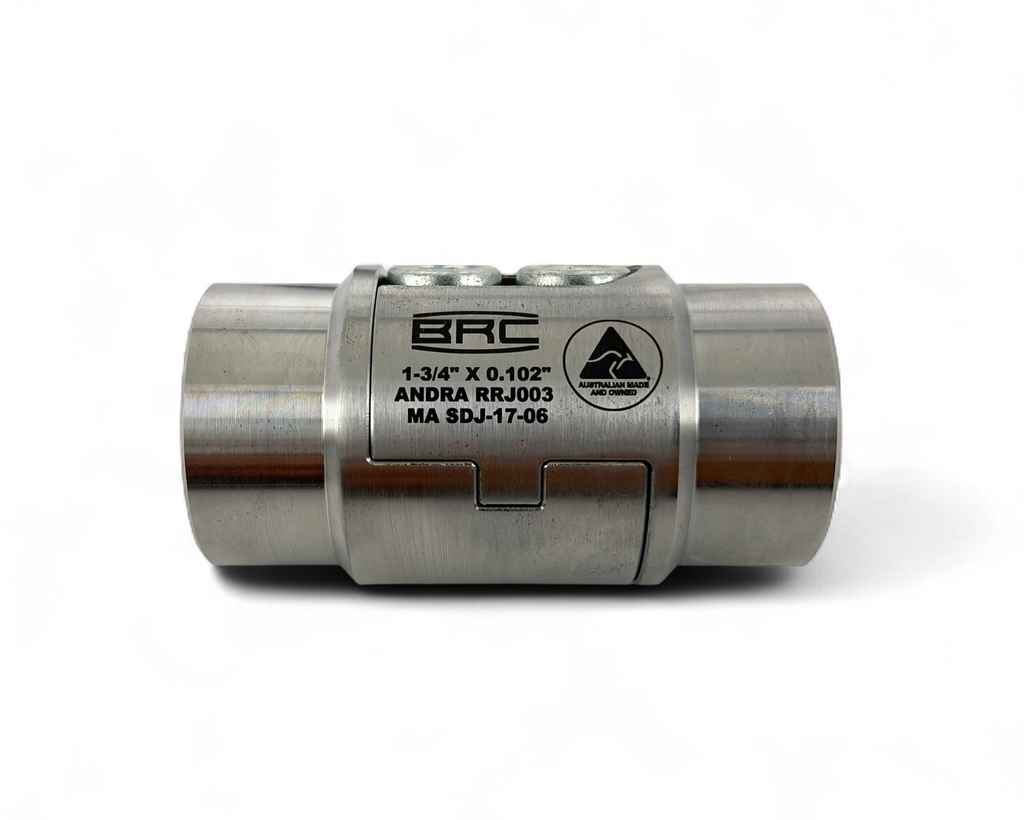

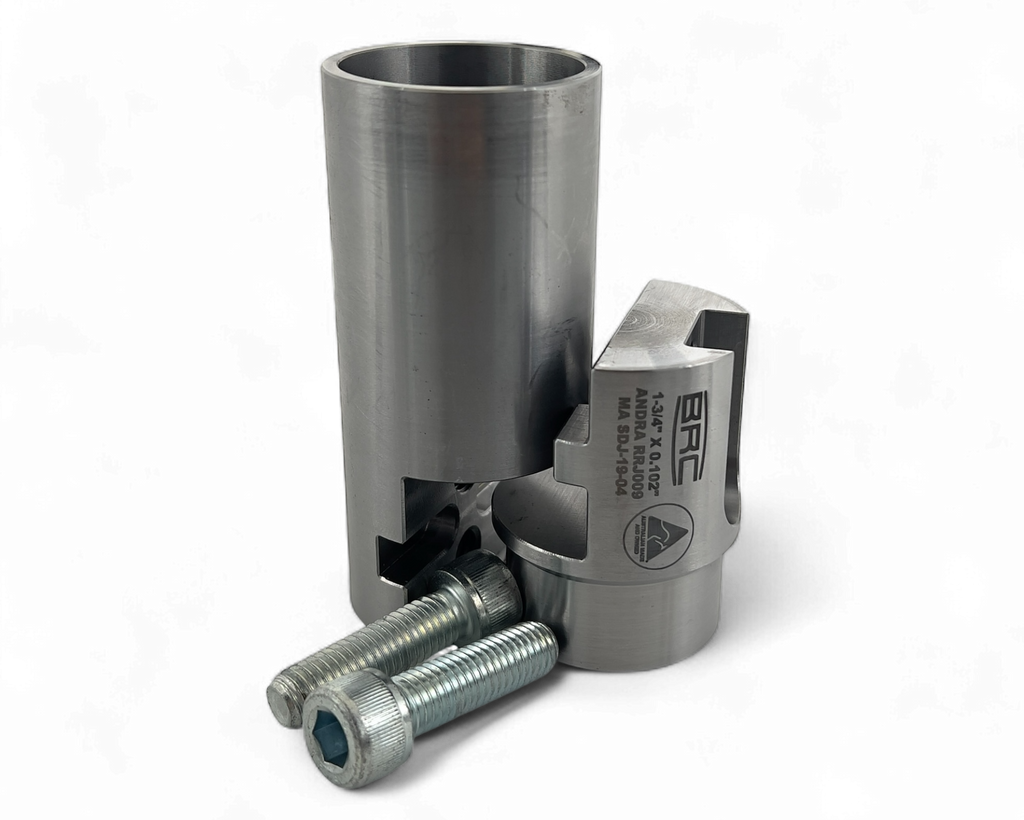

1 x TUBE JOINER
Suits TUBE: 1-3/4" O.D. x 0.102" Wall.

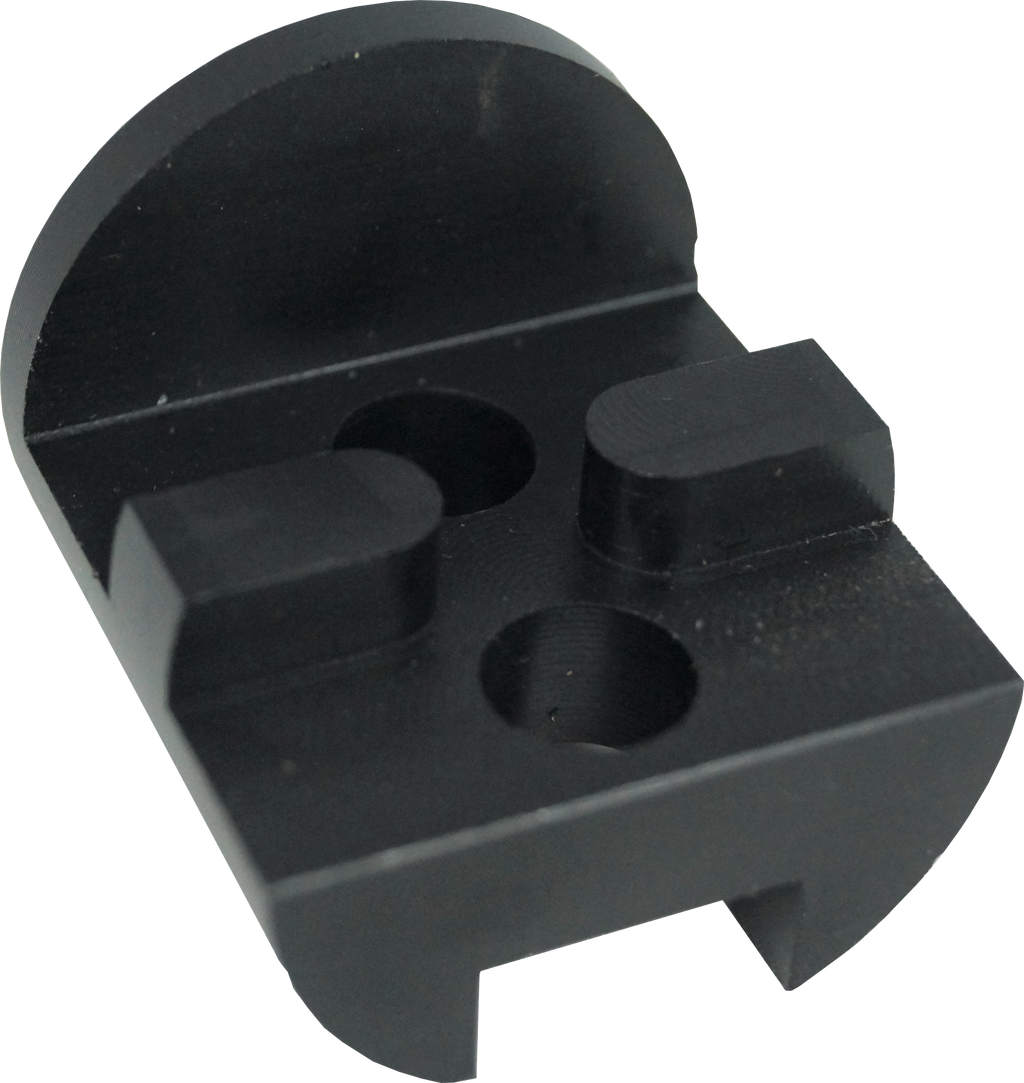

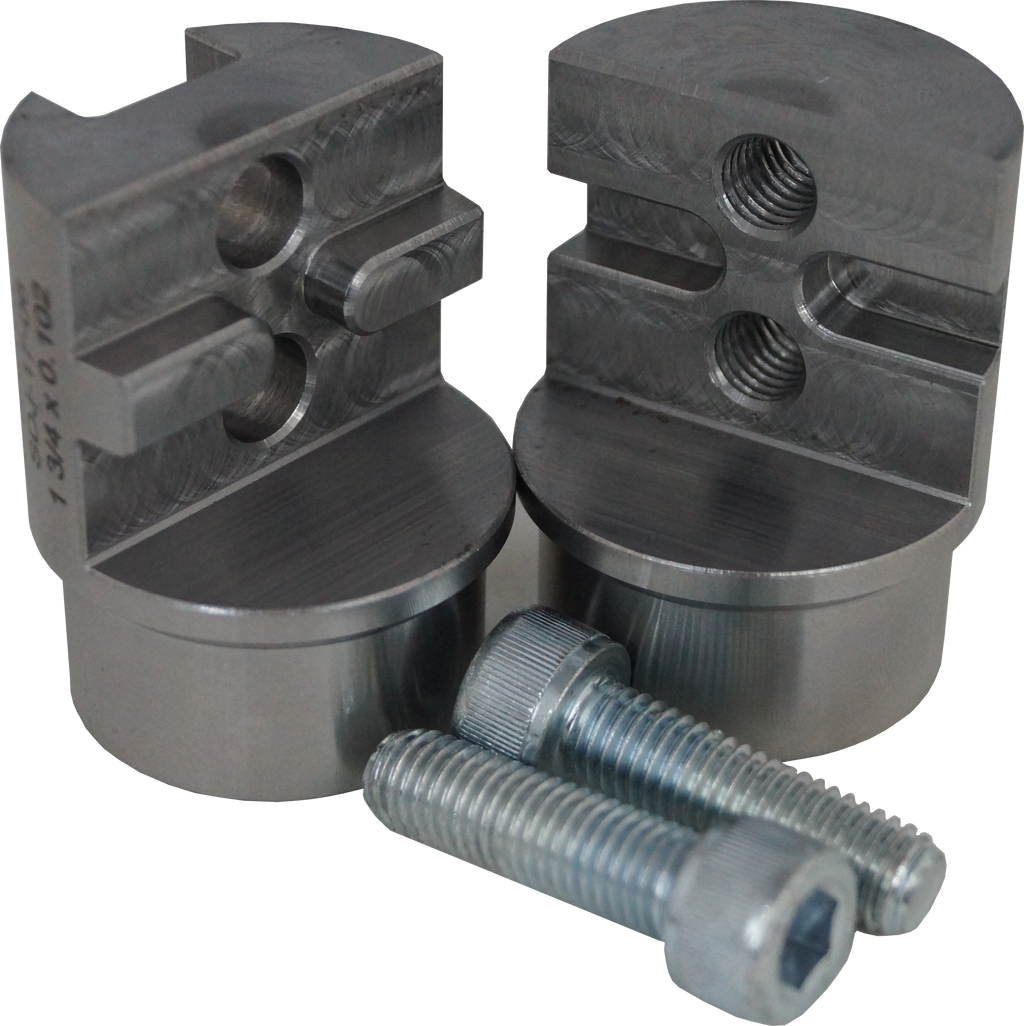

1 x Female Half
1 x Male Half
2 x M10 Grade 12.9 Bolts
Made from CS1020 Mild STEEL

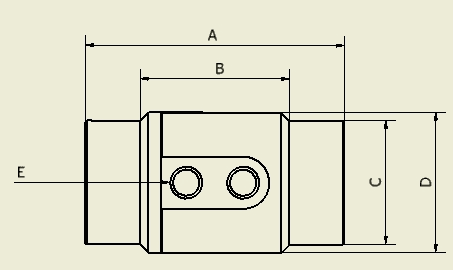

A=82 B=46mm C=39.2mm D=44.4 (1.750") Weight with Bolts = 0.7Kg

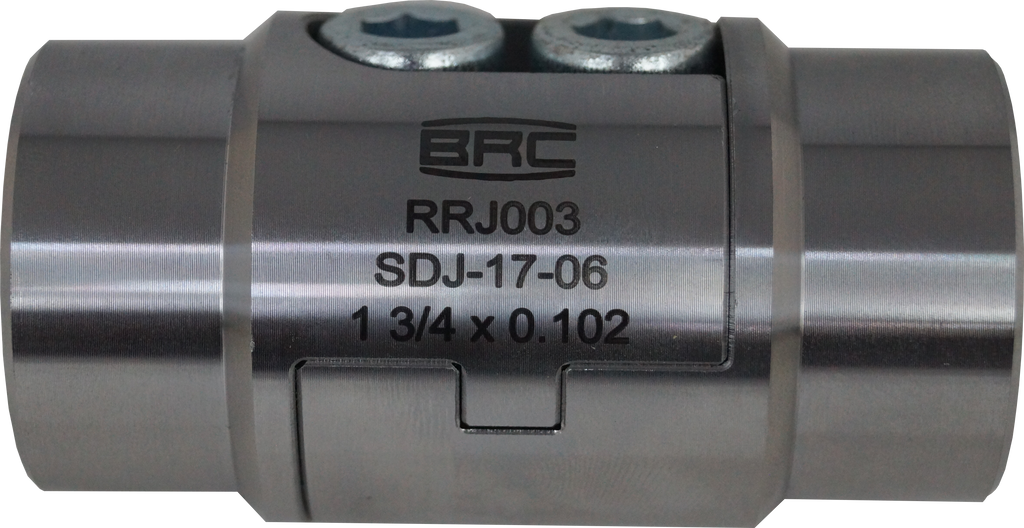

MOTORSPORT AUSTRALIA Homologation Number: SDJ-17-06
ANDRA Homologation Number: RRJ003
Legal Considerations:
Billet Race Craft makes no claim as to the suitability or safety of this joint when used in a safety cage, only that it meets the load requirements specified in: 2017 FIA Homologation Regulations For Safety Cages.
