Description

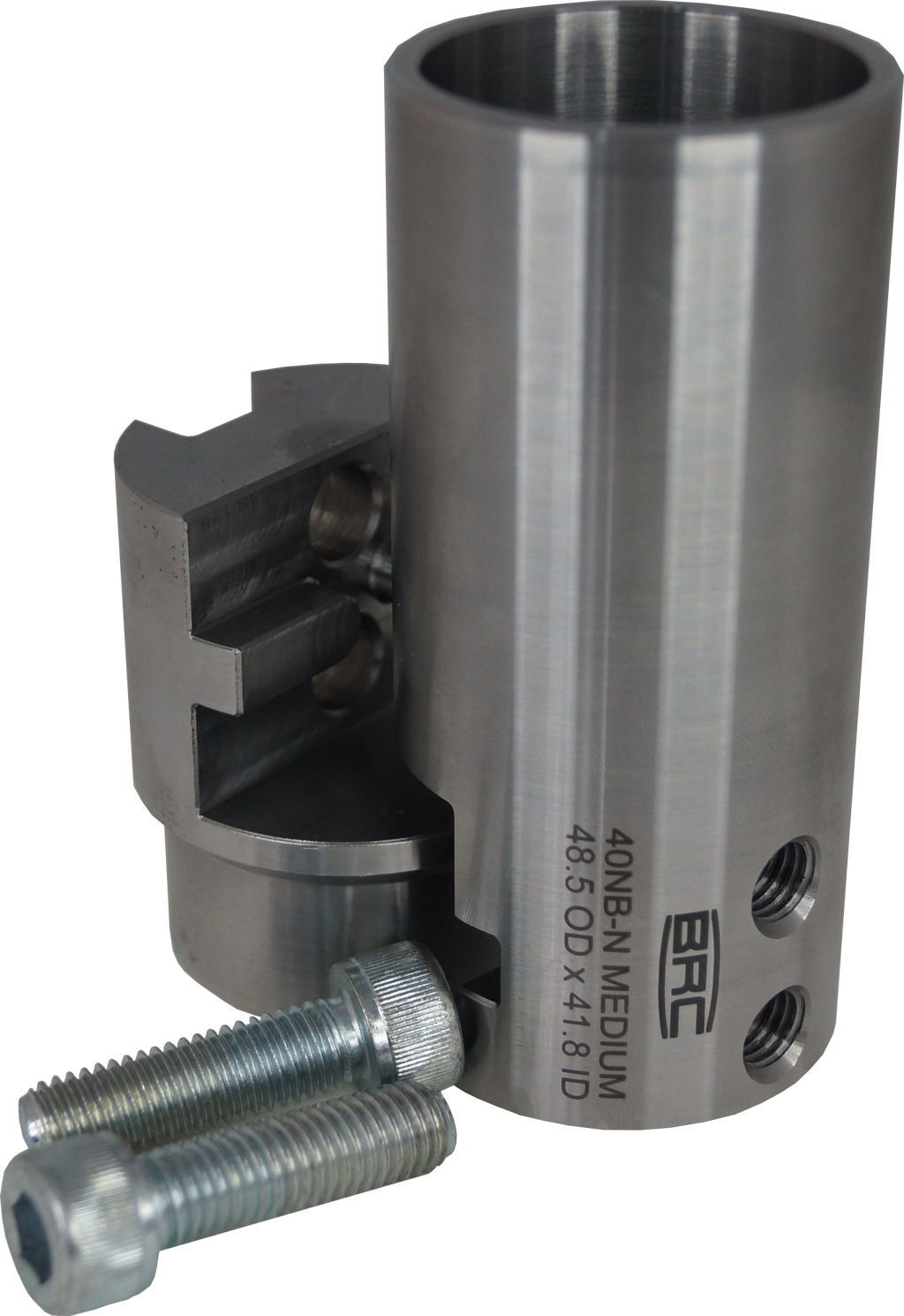

1 x TUBE JOINER
Suits TUBE: 40mm Nominal Bore.
40NB X 3.2 WALL DIAMETER
41.8mm ends WHERE IT FITS INSIDE YOUR 3.2mm WALL PIPE.
1 x Female Half
1 x Male Half
2 x M10 Grade 12.9 Bolts
Made from CS1020 Mild STEEL

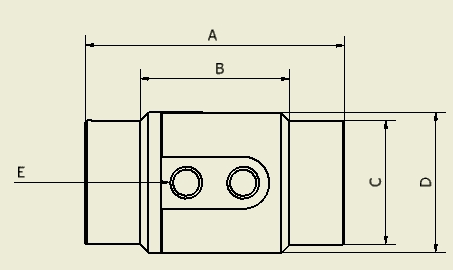

OUTSIDE DIAMETER: D = 48.5mm
PIPE INSIDE DIAMETER/DIAMETER OF ENDS OF JOINERS: C = 41.8mm
These are most often used in external Scrub Bars on off road vehicles. Easy to use and the 40NB pipe is readily available.
Legal Considerations:
Billet Race Craft makes no claim as to the suitability or safety of this joint when used in a safety cage. Although a similar design and steel as approved joints, the 40NB has not been tested by any certified lab and is not approved for use in a safety cage designed to protect the occupants.
